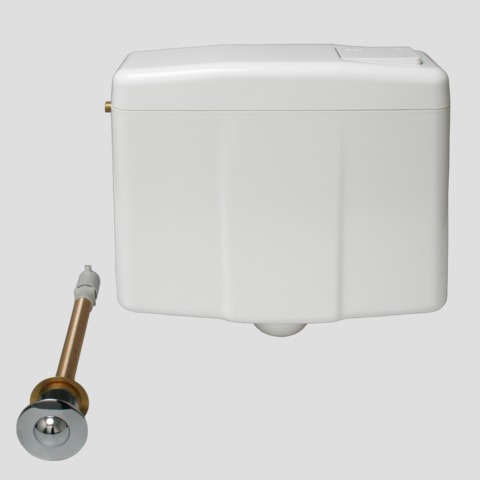

Cistern 926 with WC push button, chrome, single flush, round, for prisons, remote pneumatic flush actuation
Low level, for in-wall installation, flush volume adjustable from 6-9 l,
factory set 6 l, fully insulated, 3-side connection and fill valve,
cistern dimensions w/h/d: 442 x 366 x 150mm, distance middle water
inlet cistern/middle flush pipe outlet 485mm, fixation of cistern middle/middle 240mm, flush pipe length from upper edge of wall to end of flush pipe 155-263mm, consisting of: cistern 926, angle valve G 1/2 and chromed connection pipe, flush pipe bend with rubber joint, pneumatic WC push button 1V, chromed brass, outer diameter 70mm, inner push button diameter 35mm, height over tiles 15mm, for wall thickness incl. wall covering of 270mm, min. hole diameter (prepared by customer) 45mm, installation depth from wall co-vering to back of pneumatic unit 353mm, the product cannot be cut, with pneumatic push button, pneumatic lift device 1V, pneumatic hose 1V-2. 35 m, installation instructions and fastenings, packed in a box An additional flush operation by the push button integrated in the cistern cover is not possible.

Accessories for flush pipe extension:

- extension pipe
